SPECS

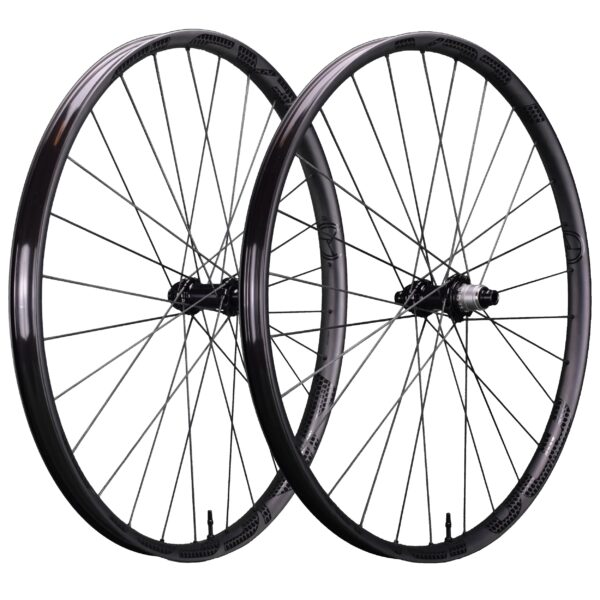

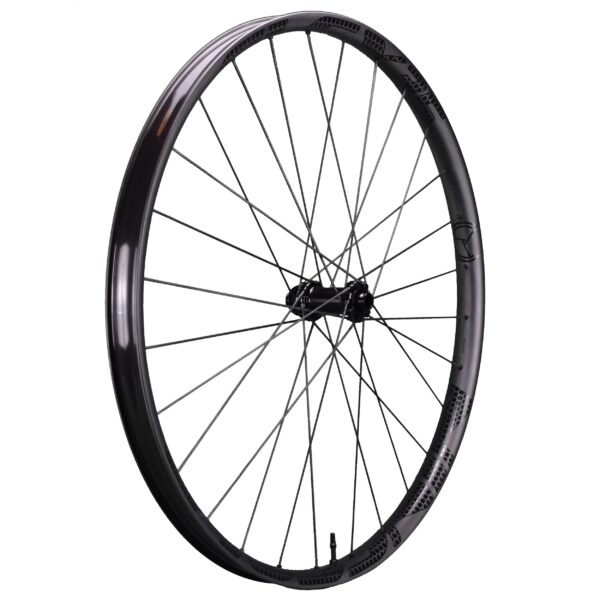

• A truly revolutionary wheelset
• A specially developed flex rim that combines lateral stiffness with vertical shock absorption for grip and comfort
• Extremely light and strong Berd spokes make the most of the Flex rim. Brought together to achieve the optimum effect as a wheelset
• Ultra light Ninefold Ultimate Edition w. vibration damping Berd Spokes
• Asymmetrical rim profile for the best quality wheels with perfectly balanced spoke tension between both sides of the wheels
• Light and reliable DT Swiss 180 EXP hubs
• DT Swiss Ratchet EXP paired with ceramic bearings
• 30 mm internal width for 2.25 to 2.50 tires
• Only available with Ninefold lightweight rims
• Designed for XC and Marathon Racing
WEIGHTS
Rider + gear max. weight: 115 Kg
Weight of the set: 1163 gr.
Weights are measured without valves and rim tape (± 25 gram total)
HANDBUILT IN THE NETHERLANDS
All 9th Wave wheels are handbuilt by our master wheelbuilders in the Netherlands.
RIM
Rim weight 348 g.
Flex Technology
ERD: 604
Size: 29er / 700c
Hookless Rim
Asymmetric Rim Design
Angled Spoke Holes
Mixed 3K/UD carbon layup
UD carbon finish
Custom design available: Any color is possible
Tubeless ready, rim tape installed
Tubeless valves installed
BERD SPOKES
Berd spokes are made from an advanced polymer and have 12 times the strength-to-weight ratio of steel and floats on water. Berd spokes have an improved fatigue life over steel and are impervious to the elements. This is what makes Berd spokes the lightest, strongest, and most durable spokes ever invented.
These spokes have strong vibration-damping properties in combination with the special made Flex rims. This means that shock loads are not transmitted directly to your body.
More than 50% weight saving compared to the already light DT Revolution spokes and a unique combination of Ninefold carbon layup with Berd spokes provides a perfect mix between low weight, comfort and durability.
