SPECS

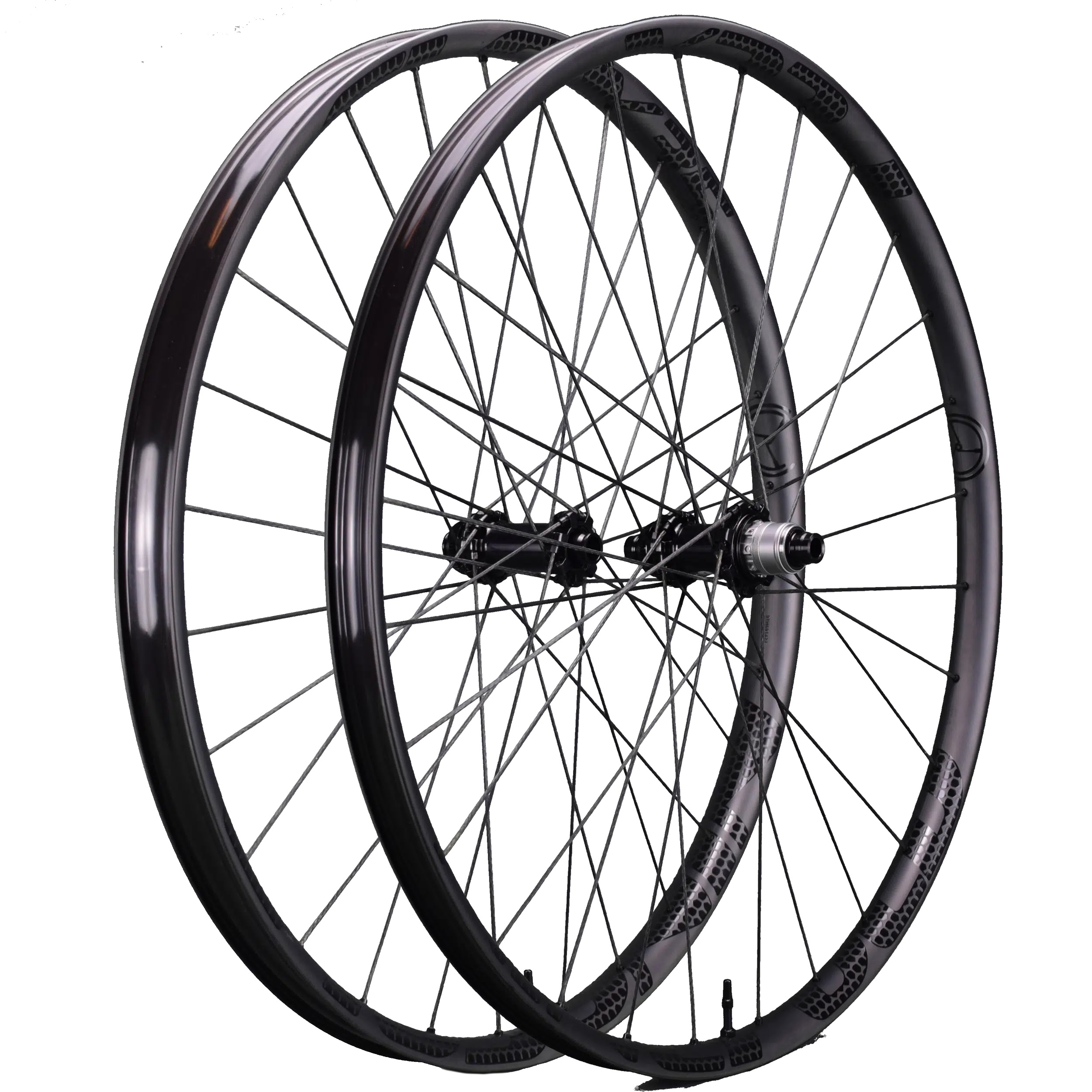

• A truly revolutionary wheelset with a specially developed flex rim that combines lateral stiffness with vertical shock absorption
• Extremely light and strong Berd spokes make the most of the Flex rim. Brought together to achieve the optimum effect as a wheelset
• Ultra light Ninefold Ultimate Edition w. vibration damping Berd Spokes
• 35 mm inner width for great grip, traction and comfort
• Light and reliable DT Swiss 180 EXP hubs
• DT Swiss Ratchet EXP paired with ceramic bearings
• Designed for XC, Marathon and multiday stage racing
• Optimized for 2.35 tot 2.60 tires
• Only available with Ninefold lightweight rims
WEIGHTS
Rider + gear max. weight: 115 Kg
Weight of the set: 1217 gr.
Weights are measured without valves and rim tape (± 25 gram total)
HANDBUILT BY PI ROPE
All 9th Wave wheels are handbuilt by our master wheelbuilders in the Netherlands.

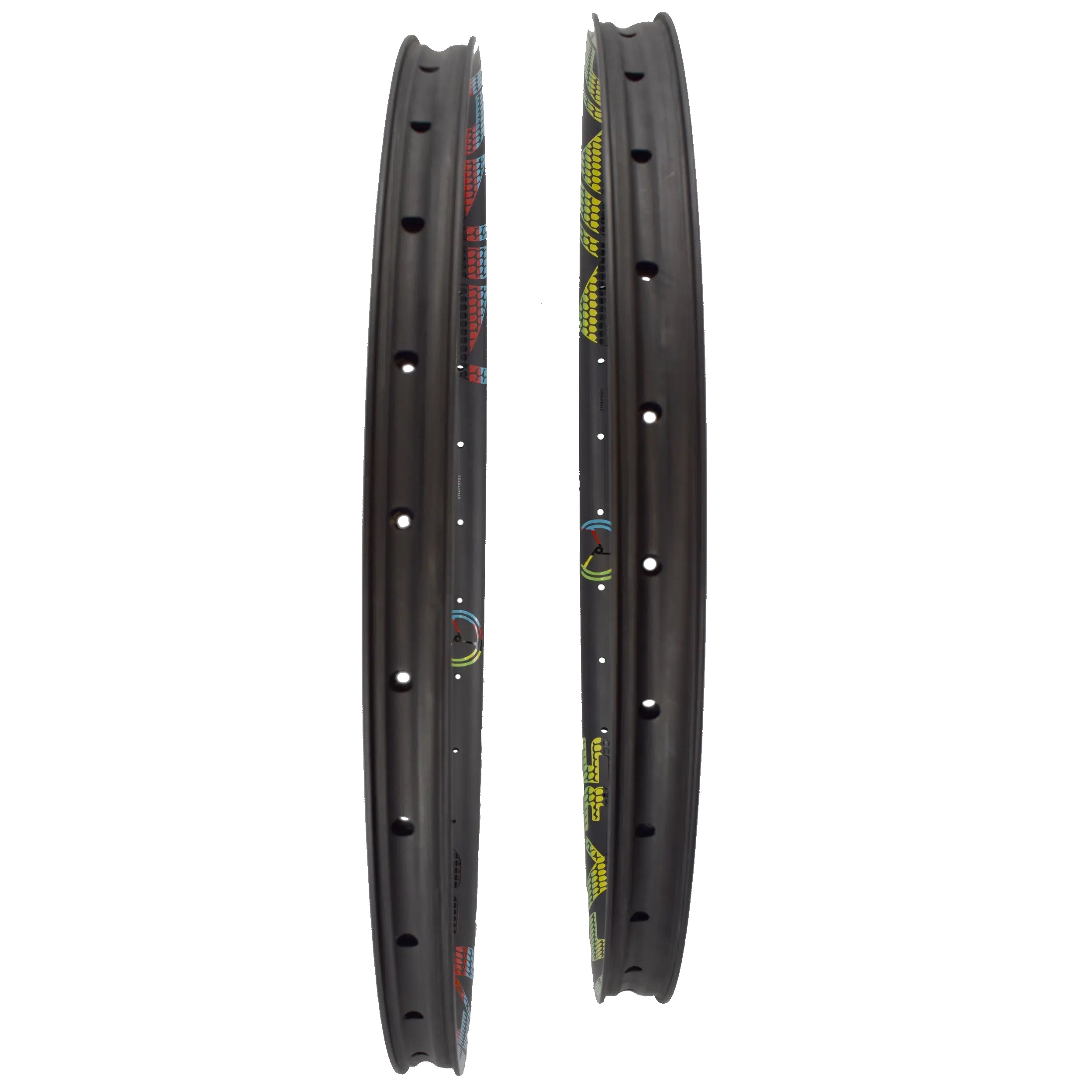

RIM
Rim weight 385 g.
Flex Technology
ERD: 604
Size: 29er / 700c
Hookless Rim
Asymmetric Rim Design
Angled Spoke Holes
Mixed 3K/UD carbon layup
UD carbon finish
Custom design available: Any color is possible
Tubeless ready, rim tape installed
Tubeless valves installed
PI ROPE SPOKES
Pi Rope Spokes are made of textile fiber Vectran™ and have strong vibration-damping properties in combination with the special made Flex rims. This means that shock loads are not transmitted directly to your body.
More than 50% weight saving compared to the already light DT Revolution spokes and a unique combination of Ninefold carbon layup with Pi Rope spokes provides a perfect mix between low weight, comfort and durability.
